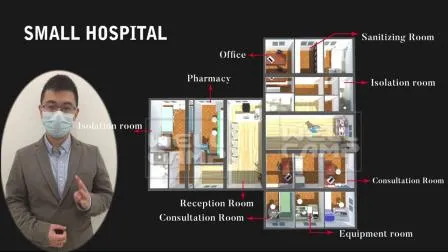

Flatpack Modular Container Makeshift Hospitals
UN army South Sudan Camp General technical description for standard container house modelDimensions and WeightInner leng
Basic Info.
HS Code | 9406000090 |
Production Capacity | 1500units/Month |
Product Description
UN army South Sudan Camp
General technical description for standard container house modelDimensions and WeightInner length /external length: 5.81m/6.06mInner width /external width: 2.188m/2.438mInner height/external height: 2, 68m/2.89mWeight: 2000kg per unitSteel frameworkMaterial: Steel material Q345, thickness: 2.75mm, for top beam frame. Base beam frame and column.Surface working: Epoxy painting, two bottom and two surface.Fittings: 8 standard container corner mould fittings PVC standard rainwater pipeFloorExternal wainscot: Flat galvanized color steel sheet, 0.4mm thicknessFloor structure: Girder made of 2.75mm steel. The purlin is C section steel. Dimension 60x40x1.5mm.Warm proof Insulation layer: 75mm rock wool18mm fiber cement board2.0mm PVC floor leather for living rooms floor;CeilingConstruction:Roof exterior layer: 0.4mm galvanized steel with powder coated paint.Warm proof insulation filling: 75mm rockwool between C section purlins;Ceiling: 0.4mm Walls: 0.4mm galvanized steel with powder coated paint.Panel width: 1150mm; Panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.Construction:Common room wall: 75mm rockwool 0.4/0.4mm GalvanizedSteel on both side, Desity of Rockwool: 120Kg/m3Galvanize window opening on the wall if needed.DoorExternal door: Insulated with opening dimension 950*2100mm, furnished with lockWith 3keys. Inner door: Insulated steel door.WindowsWindow material: PVC window with fly screen. Double glass, 4mm glass.Electrical fittings optionElectrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.Main outlet and input industrial socket with 32A.3 pcs 16A five hole universal socket.2 pc double tube fluorescent lamp, 220V, 50-60HZ1 pc Single Switch, Honyar brand, with junction box1 pc Electrical distribution box, box+breakers+earth leakage protective deviceOptional Water system fittingsWater drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVCSanitary ware:Western Close tool: Ceramic, with pipes and installation fittingsUrinal: Ceramic, with pipes and installation fittingsWash basin: Ceramic, with post, faucet, pipes and installation fittingsShower head, Shower base, Water mixture
Flat Pack Container | |
Frame | |
Steel Frame | 2.75mm,Q235, welding,rust removal,epoxy painting |
floor support | C100x40x2.0, welding,rust removal,painting |
fork lift open | 4mm,Q345 |
Roofing | |
outer steel sheet | 1.2mm steel sheet, proceed,epoxy painting |
steel keel | C80x40x20x2.0 |
insulation layer | 80mm glass fiber, 12Kg/m3 |
wooden board | 8mm |
PVC board | 12mm |
Wall | |
EPS sandwich panel | 75mm sandwich panel |
outer door | light steel door, including door lockers,etc |
sliding window | Douber Glazing PVC window, 4mm glass,with window screen |
Floor | |
floor leather | 2.0mm, including glue |
plywood board | 18mm plywood board |
Insulation | 100mm glass fiber |
Floor bottom board | 0.5mm |
Electric unit | |
Electric cable | Honyar brand, lighting 2.5m m2, aircondition: 4.0mm2, BV cable, solid core. Three diferent color |
PVC wire Channel | Honyar brand |
Lights | double tube fluorescent lamp, 220V,50-60HZ |
Switch | with junction box |
Socket | 10A, Five hole universal Socket, with junction box |
Power distribution cabinet | box+switch+earth leakage protective device |
common socket | 16A |
ceiling light | 38W |
electric cable | three colors |
switch | |
distribution board | box+switch+earth leakage protective device |
Others | |
lift corner piece | standard parts |
rainspout | Φ50PVC |
accessories | self-tapping screw,glue,edge cover,etc |
transpotation | From factory to Qingdao port |
Certifications
Certifications
ISO and CE certificate.
Company Information
Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, LGS steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 21 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE and SGS approval.Best regardsSteven Chen---------------------------------------------------------Weifang Henglida Steel Structure Co., Ltd.Add: Room1102, Unit B, Zhonghui Commercial Building, Qingdao, 266000, China
